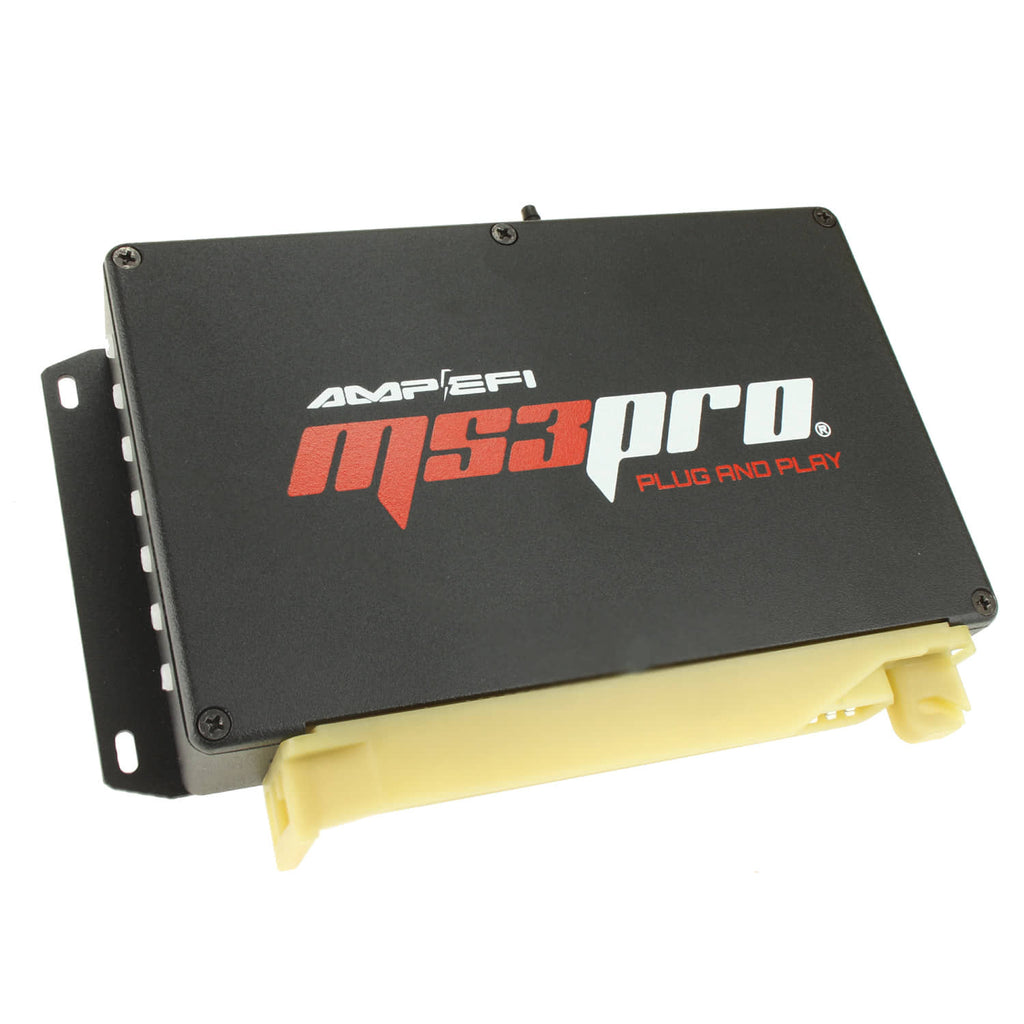

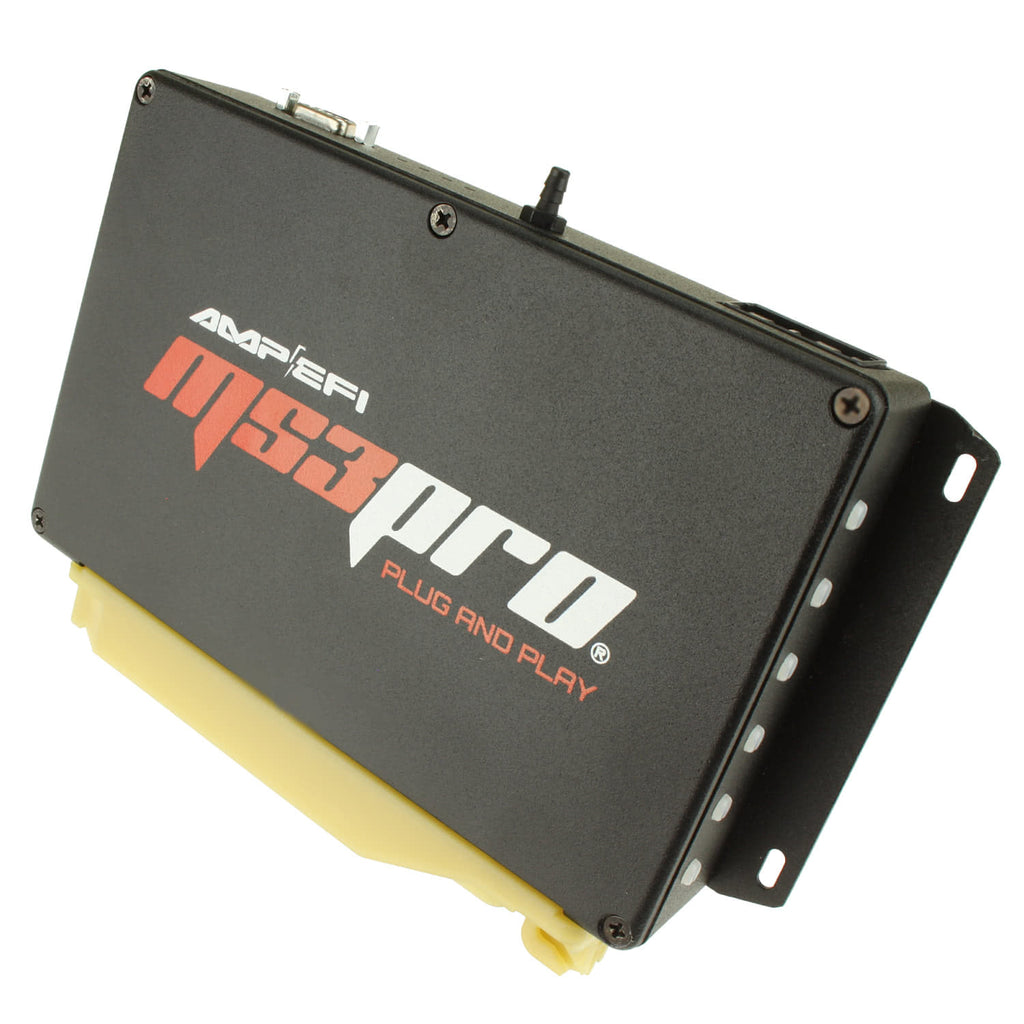

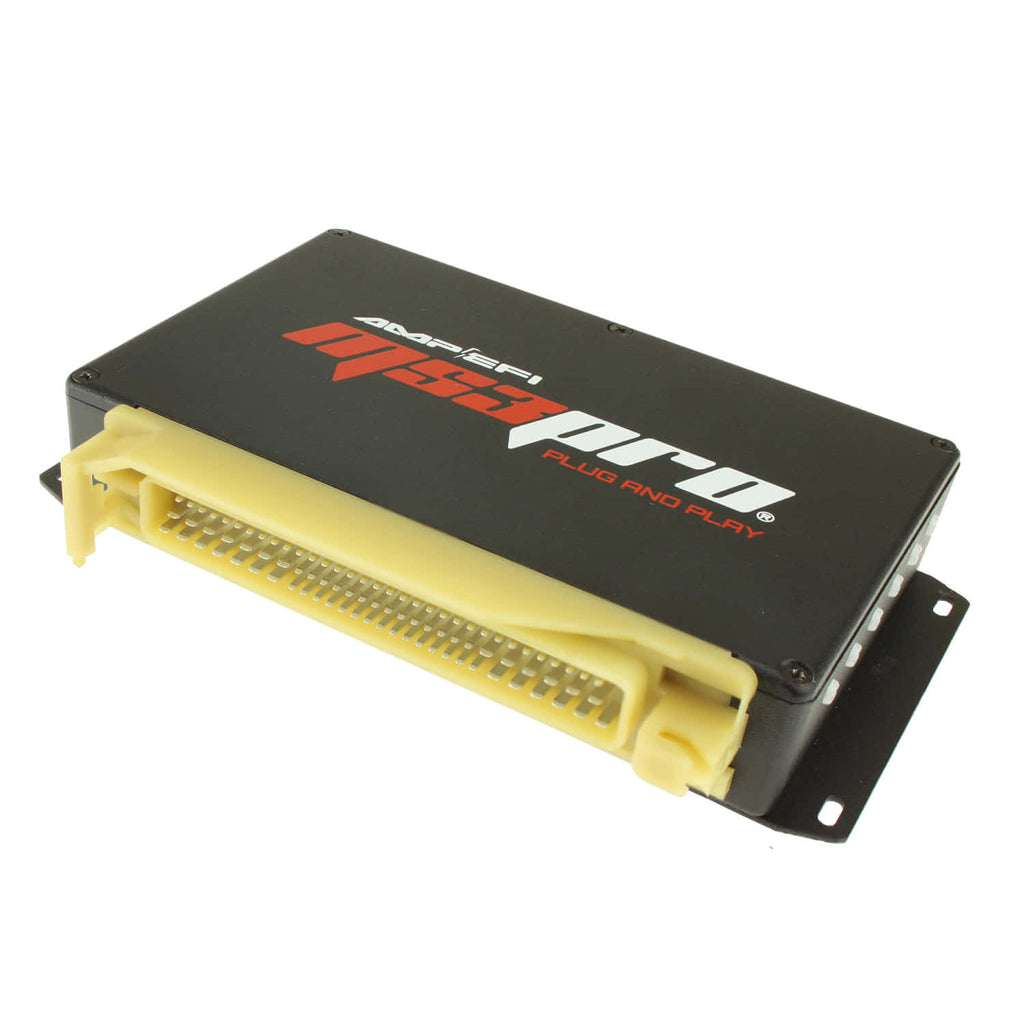

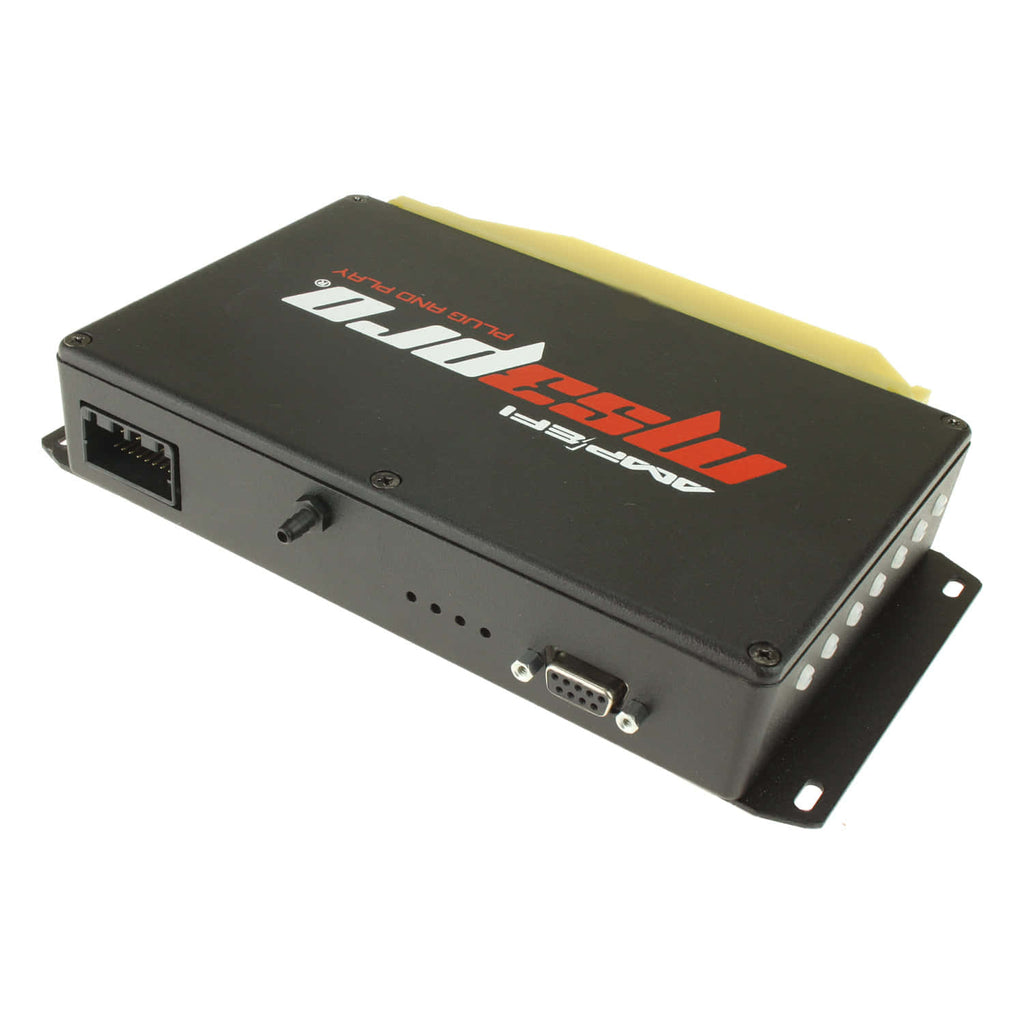

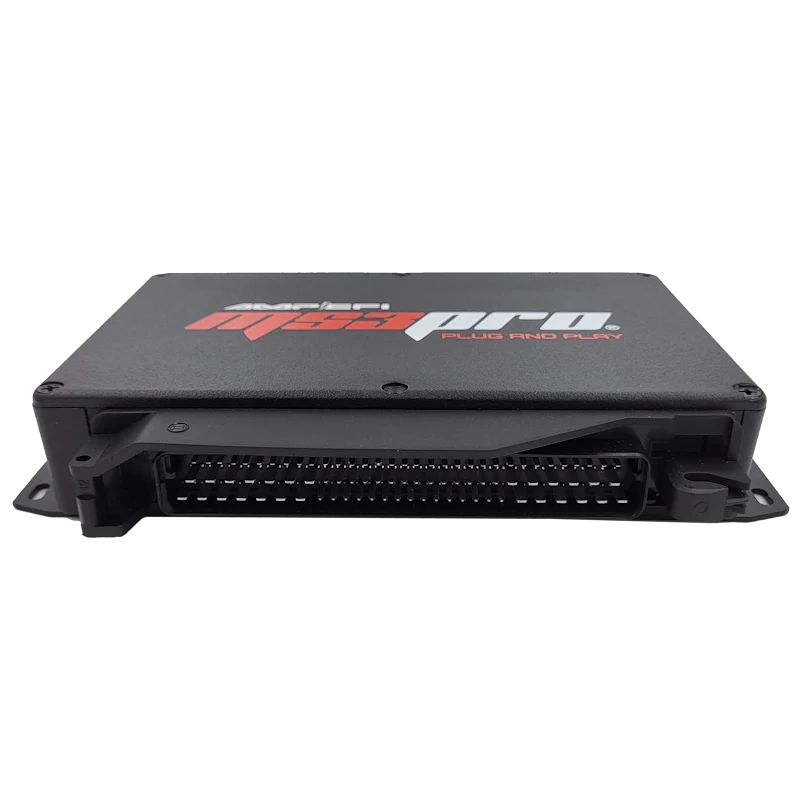

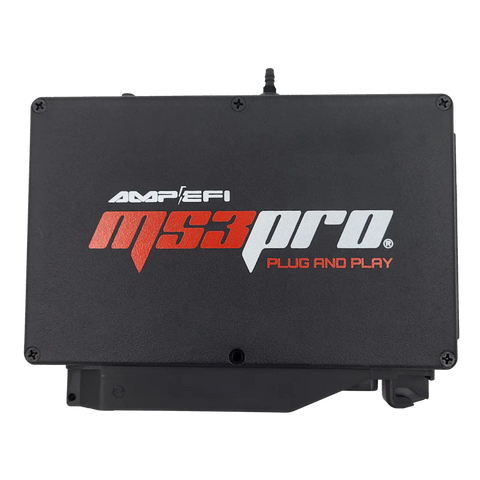

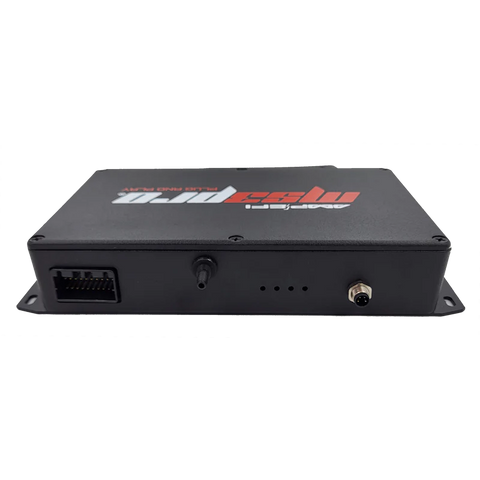

1993, 1994, 1995 BMW E36 MS3Pro Plug and Play Standalone Engine Management System
Replace your “413” or “506” DME with a tunable racing ECU! This BMW E36 ECU allows tuning your 1993-1995 BMW E36 (including the 1995 BMW M3!) with a laptop to handle any mods you can throw at these engines!
The BMW E36 MS3Pro Plug and Play fits the following applications (Confirmed for US market vehicles)
- 1993-1995 BMW 318i and 325i with M50 motor and manual transmission
- 1995 BMW M3 with S50 motor and manual transmission
- 1993-1995 BMW 525i with M50 motor and manual transmission
European market M3 compatibility is not confirmed at this point. Does not fit the earlier M50 non VANOS applications.
1993, 1994, 1995 BMW E36 ECU — MS3Pro Plug and Play Features:
- Fully Plug and Play Installation – No wiring required for basic functionality.
- Average install time is under 1 hour!
- Base map is pre-loaded to help your engine start on the first turn of the key
- Real time tuning and data logging with a laptop connection
- 8 GB internal data logging with built in SD card
- Supports most aftermarket wideband sensors/controllers
Fully Tunable Engine Control!
- 16×16 Fuel Tables allow high resolution tuning
- 16×16 Ignition Tables
- Multiple Acceleration enrichment strategies
- Closed Loop Idle Speed Control
- Air Conditioner Control
- 6 sequential fuel injector channels with individual trim tables
- Onboard peak and hold drivers support both high and low impedance injectors – No external ballast resistor is needed!
- Allows removal of stock MAF sensor
- VANOS control
Advanced Feature Set (Included!)
- 12×12 Air Fuel Ratio Target Tables for use with wide band O2 sensor for precise tuning and table trim.
- Multiple traction control strategies
- Built-in 3-step rev limiter / launch control with flat shift and burnout rev limiter
- Time based timing / boost increase after launch
- Real time barometric correction
- Internal 4-bar MAP sensor reads up to 44PSI of boost
- Overboost protection
- Closed loop boost control (Requires EBC solenoid kit)
- CO2 based boost control
- Set boost by RPM and throttle, ground speed, or gear
- Rally style anti lag
- Water injection control – on/off or variable
- Knock sensor input with adjustable sensitivity, crank angle windowing, and more
- Table switching input. Change fuel and spark maps on the fly for different fuels, nitrous activation, etc.
- Input for flex fuel sensor – switch between E85 and gasoline on the fly!
- Supports many aftermarket dashes/displays such as Racepak, Race Technologies, AiM Sports, AEM, Dakota Digital, Autosports Labs, Perfect Tuning, etc.
- CANBus connector allows interconnection of other MegaSquirt-compatible devices for additional functions (EGT Input, Automatic Transmission Controller, Additional Sensors…..the possibilities are limitless!
What you get in the box:

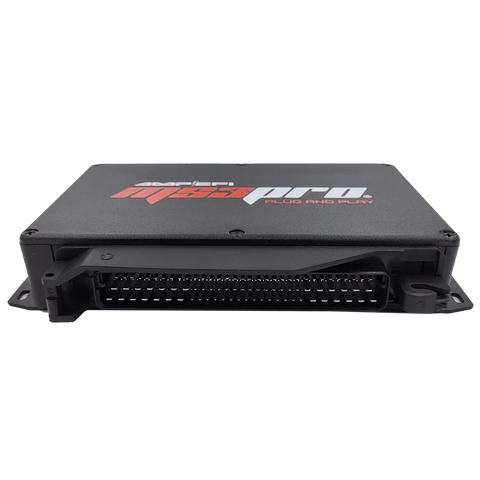

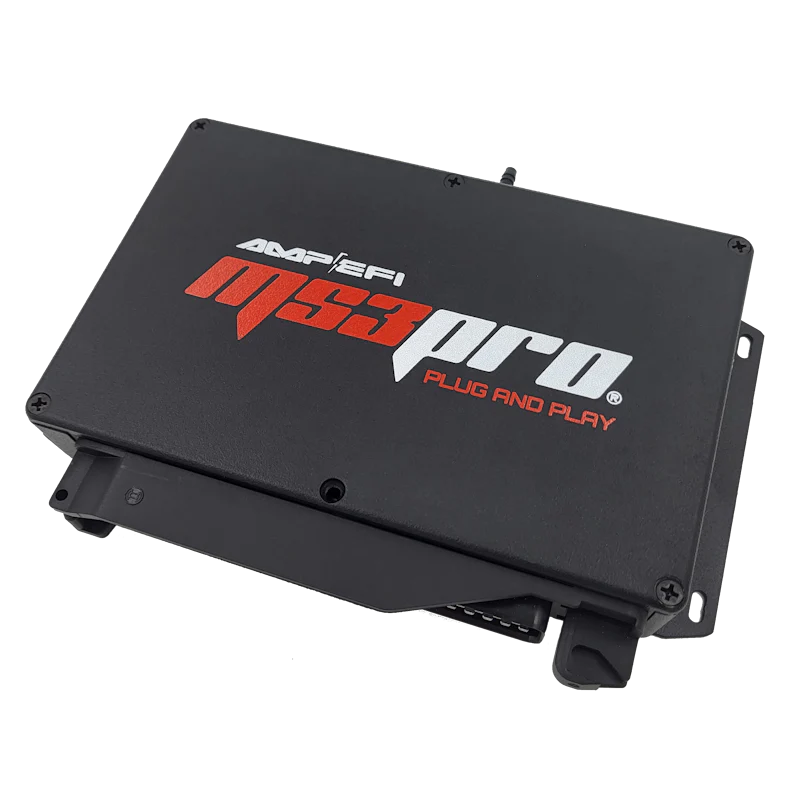

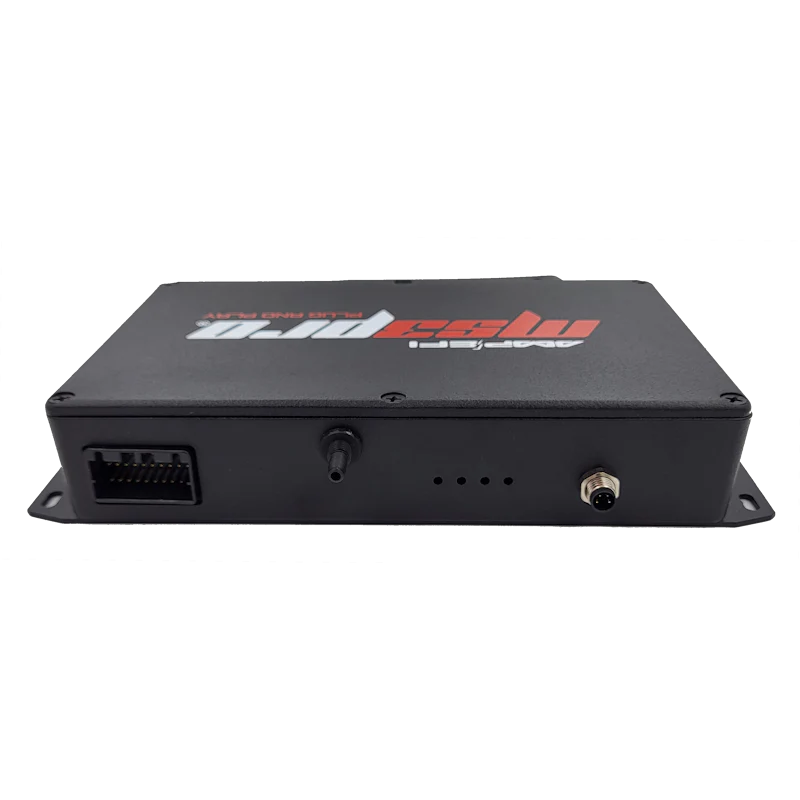

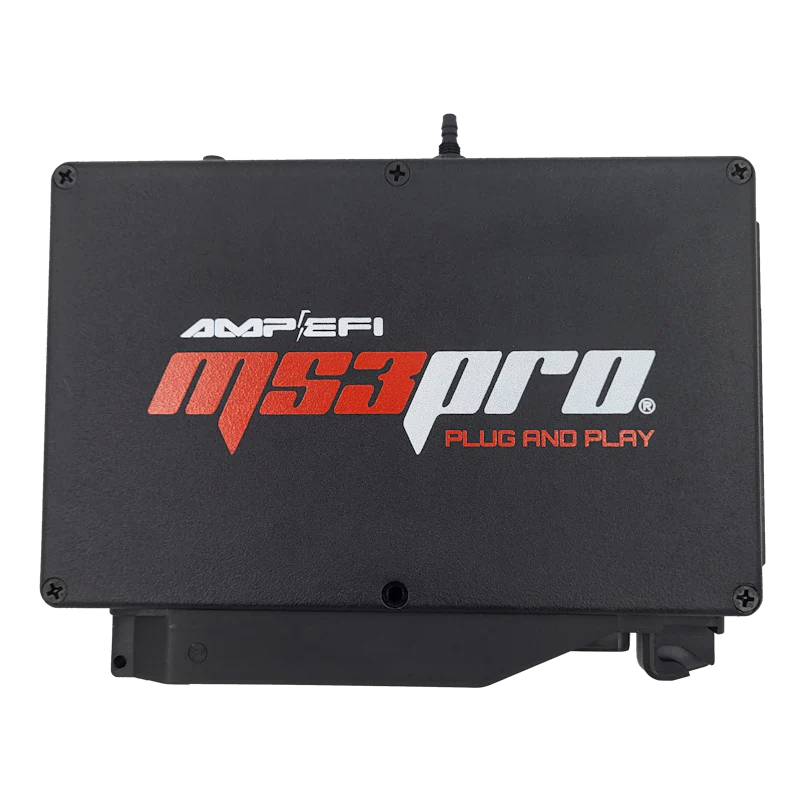

- BMW E36/E34 MS3Pro Plug and Play ECU
- RS232 tuning cable (2 of them actually to allow extended length)
- Tuning Software and Documentation on USB memory stick with three base maps included
- Stock M50
- Stock S50
- Modified S50 with upgraded cams and independent throttle body intake
- 6′ Vacuum Hose for MAP Signal and ‘T’ fitting
- ECU mounting brackets
- Registered version of TunerStudio and MegaLog viewer included
Direct replacement for the following DME part numbers:
- 0 261 200 413
- 0 261 203 506
If your ECU / DME has a different part number, please contact us to see if this ECU is compatible with your vehicle!
